| No. | Gesture | Entertainment Mode | Sports Mode | Action Camera |
|---|---|---|---|---|
| 1 | Swipe Up/Down | Video Browsing | Switch Songs | N/A |
| 2 | Swipe Up/Down & Hold | N/A | Adjust Focus (Not supported on iOS) | N/A |
| 3 | Swipe Left/Right | Page Browsing | Camera Mode Switch (Not supported on iOS) | N/A |
| 4 | Swipe Left/Right & Hold | Volume Control | Volume Control | Swipe Right to Switch Mode |
| 5 | Single Click | Play/Pause | Play/Pause | N/A |
| 6 | Double Click | Like | Front/Rear Camera Switch (Not supported on iOS) | N/A |
| 7 | Press & Hold | N/A | N/A | N/A |

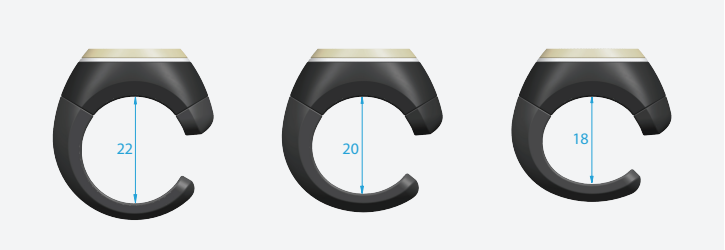

Innovative ID Design
Detachable ring design, multiple sizes to fit various finger dimensions

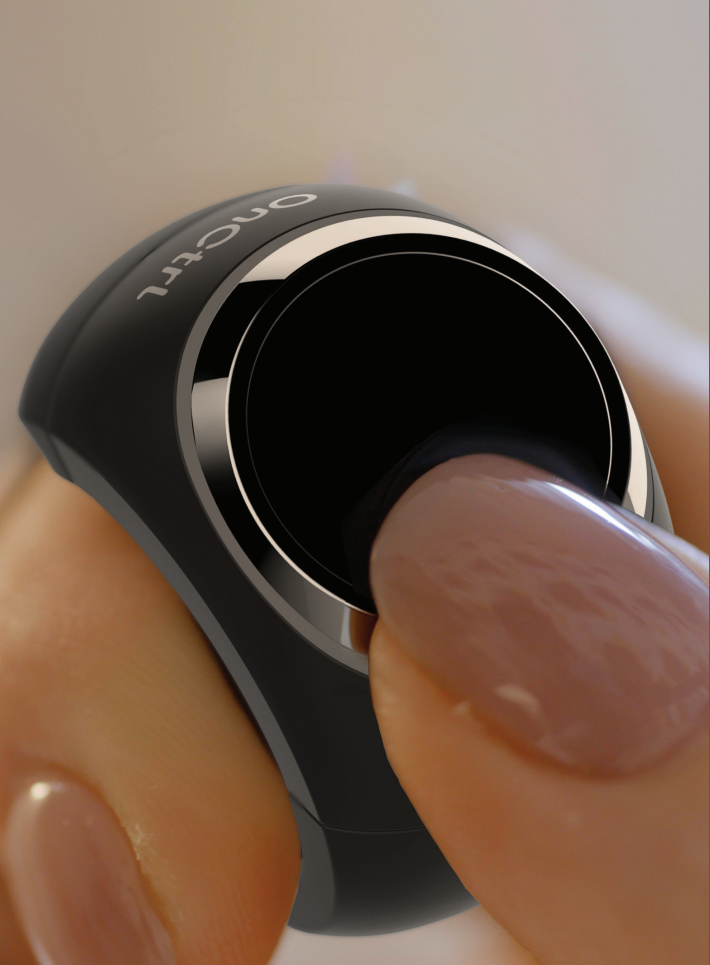

Touch Module
Highly Flexible ProxSense® Device
Deep Sleep Current: 9μA
Deep Sleep Current: 9μA

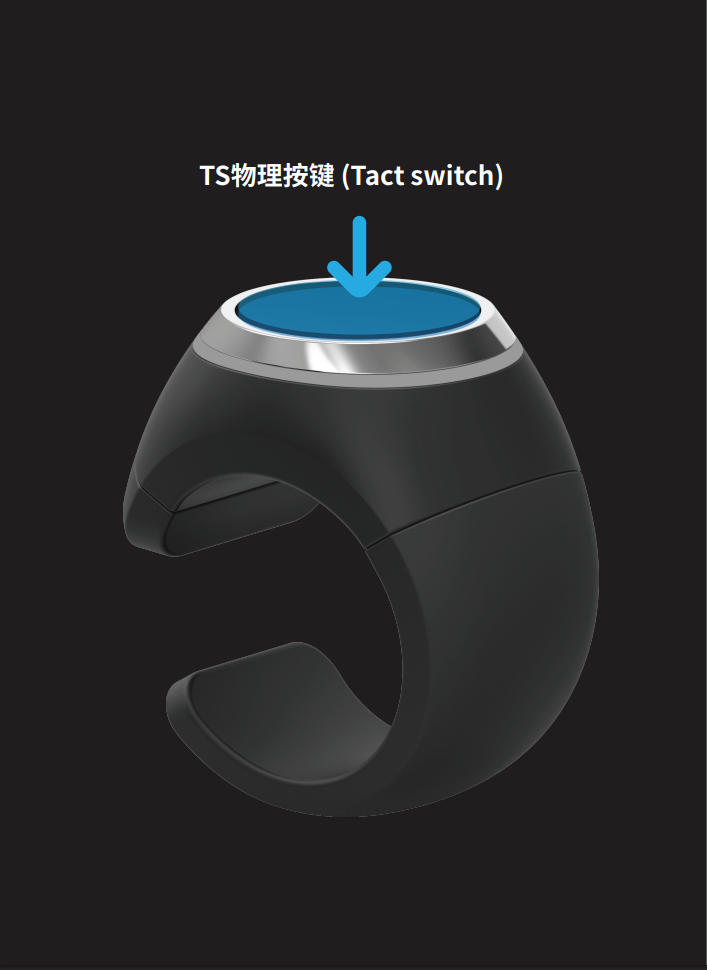

Tact Switch
General Operations
| Single Click: | Wake / Camera Shutter |
| Quick Press 5 Times: | Power Off |
| Double Click: | Switch Entertainment Mode / Sports Mode |
| Long Press 5+ Seconds: | Unpair Device |
| Triple Click: | Activate Action Camera Control |
| No. | Button Action | Entertainment Mode | Sports Mode | GoPro Action Camera Control |
Insta360 Action Camera Control |
DJI Action Camera Control |
|---|---|---|---|---|---|---|
| 1 | Single Click | Switch Coordinate Point; Activate LED, Show Current Mode | Take Photo; Activate LED to Show Current Mode | Take Photo;Record/Stop Recording;Blue Light Flashes Once | Take Photo; Record/Stop Recording; Blue Light Flashes Once | Take Photo; Record/Stop Recording; Blue Light Flashes Once |
| 2 | Double Click | Entertainment /Sports Mode Cycle Switch | Entertainment /Sports Mode Cycle Switch | Pair/Wake; Blue Light Flashes Once | Screen Off/On; Blue Light Flashes Twice | Pair/Wake; Blue Light Flashes Once |
| 3 | Press 2 Seconds until light flashes then release | Return to Home | Open Camera; Video/Photo Cycle Switch | Turn off the sports camera Blue light flashes once | Turn off the sports camera Blue light flashes once | Turn off the sports camera Blue light flashes once |
| 4 | Long Press 5+ Seconds | Unpair | Unpair | Unpair | Unpair | Unpair |
| 5 | 5 Clicks | Power Off | Power Off | Power Off | Power Off | Power Off |

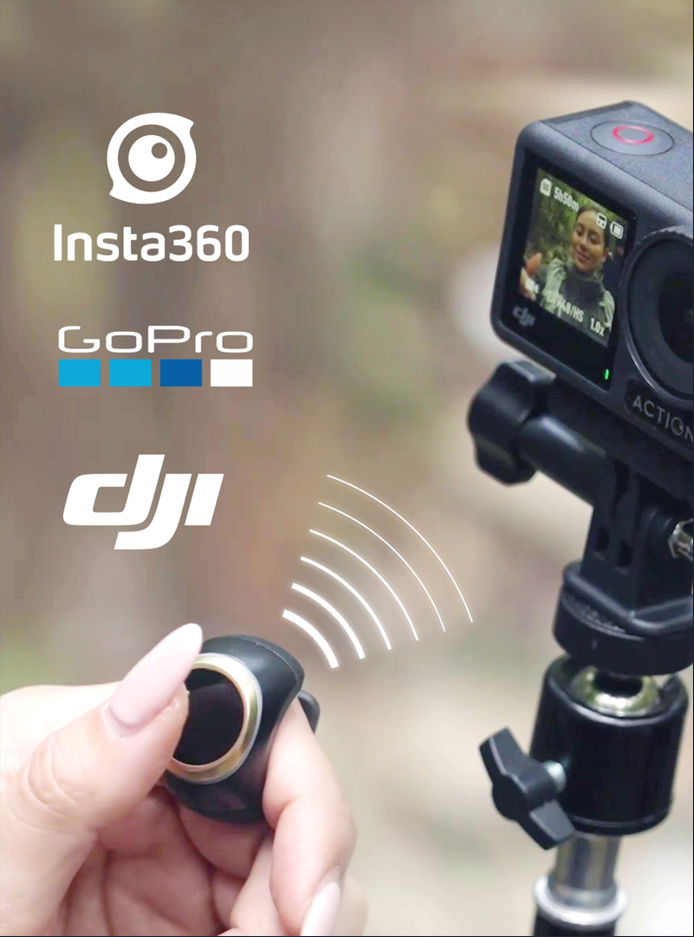

Compatible with action cameras
Compatible models：
GoPro: 13 Black、12 Black、11 Black、9 Black、MAX2
Insta 360：X3、X4、X4 air、X5、ACE PRO、ACE PRO 2
DJI：Action 5Pro、Action 6、Action 4、Osmo 360

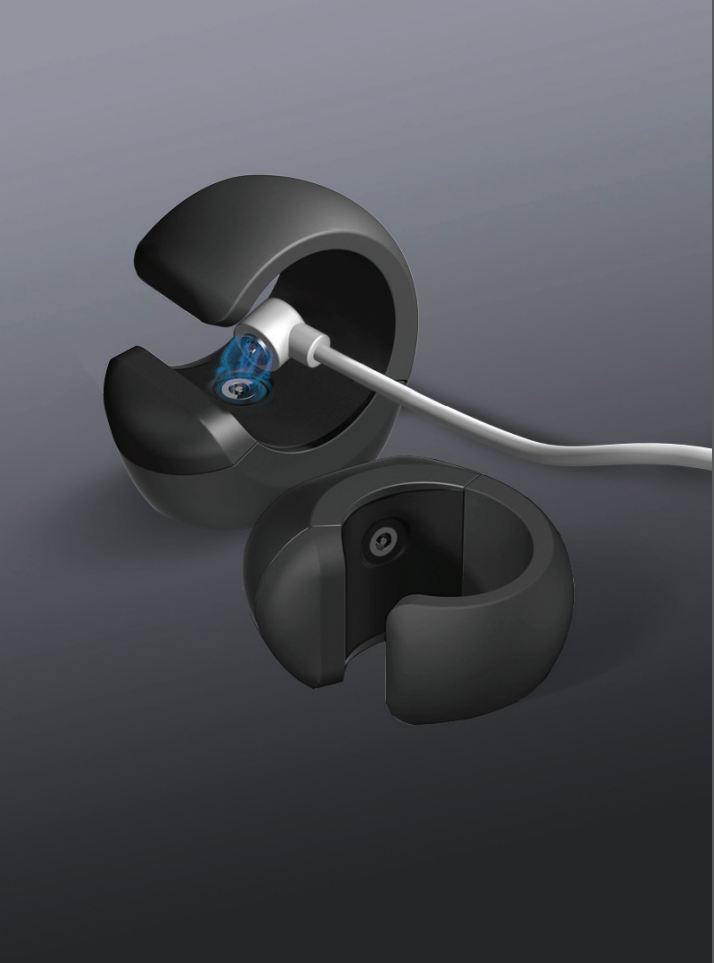

Magnetic Charging
Lithium Battery Capacity: 3.7V, 20mAh (CR301012)
Charging Current ≤20mA
Charging Time ≈1 Hour
Continuous Working Time When Fully Charged ≈8 Hours
Continuous Standby Time When Fully Charged >2 Months

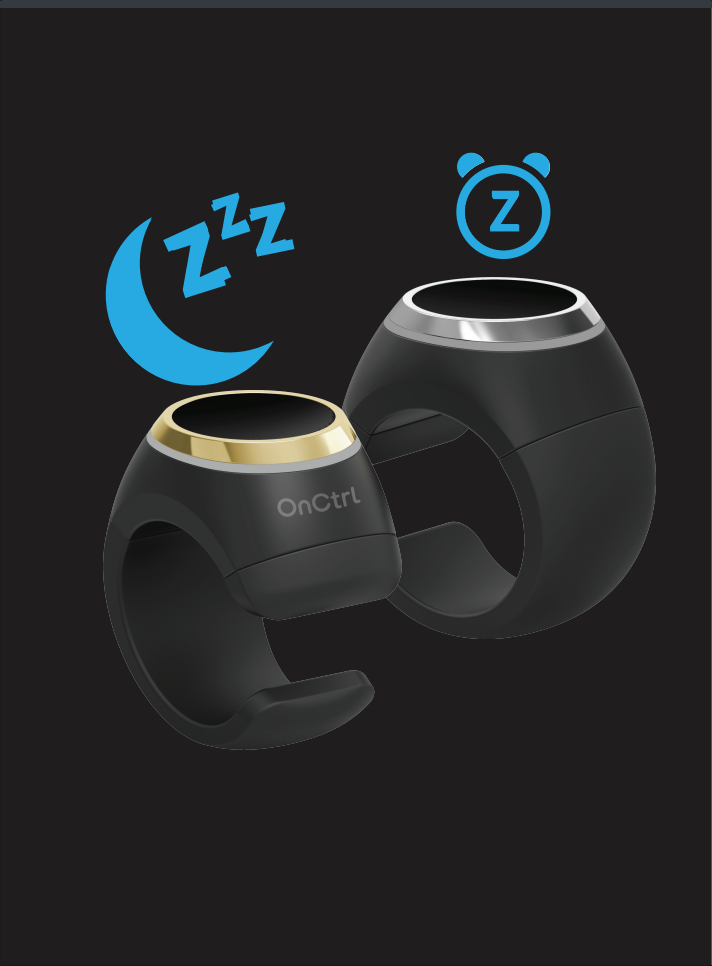

Sleep and Activation
Activation: Press TS
Sleep Mode:
Bluetooth Not Connected Mode: Returns to sleep mode after 40 seconds of inactivityBluetooth Connected Mode: Returns to sleep mode after 60 seconds (1 minute) of inactivity
Force Sleep: 5 Consecutive Clicks

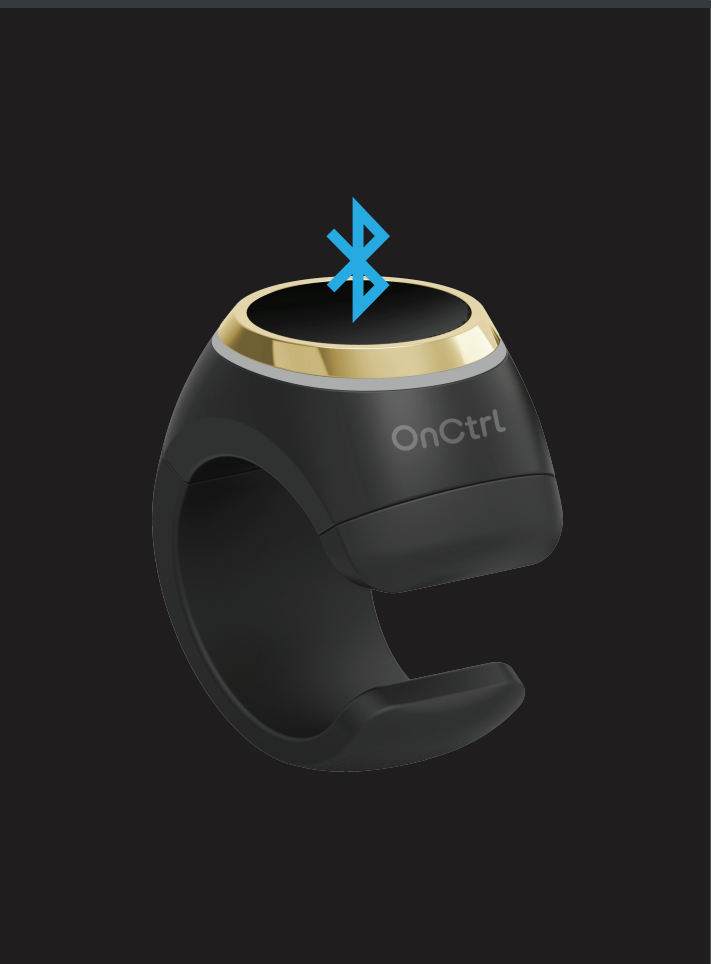

Bluetooth Pairing and Clearing
Bluetooth Pairing
Open Bluetooth settings on your phone, search for "Ring II", click to connect.
Some phones may pop up a pairing prompt, just click OK.
After successful Bluetooth pairing, you can see it's connected on your phone.
The breathing light on Ring II will flash once, indicating successful Bluetooth pairing.
Bluetooth Management
Unpaired State: LED continuously flashes
Paired: LED breathes (flashes softly) only 1 time
Clear Pairing: Long press TS for 5+ seconds

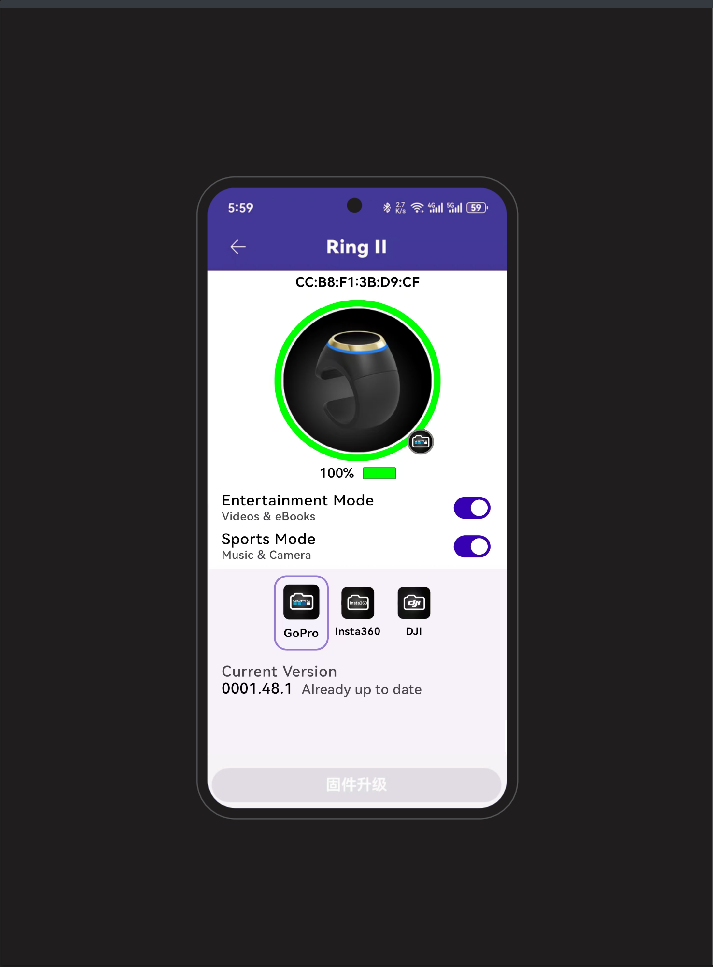

APP
APP can view Ring II battery level and version information, supports FW upgrade:
1. Device Version Management
2. Cloud-based Firmware Update Detection
3. Ring Function Mode On/Off Control (requires APP v1.6 or later)
4. OTA Update (requires charging constraint)
.Supports Manual OTA.When low battery (battery <20%), it is recommended to charge promptly
.For OTA upgrade, it is recommended that battery level >60%

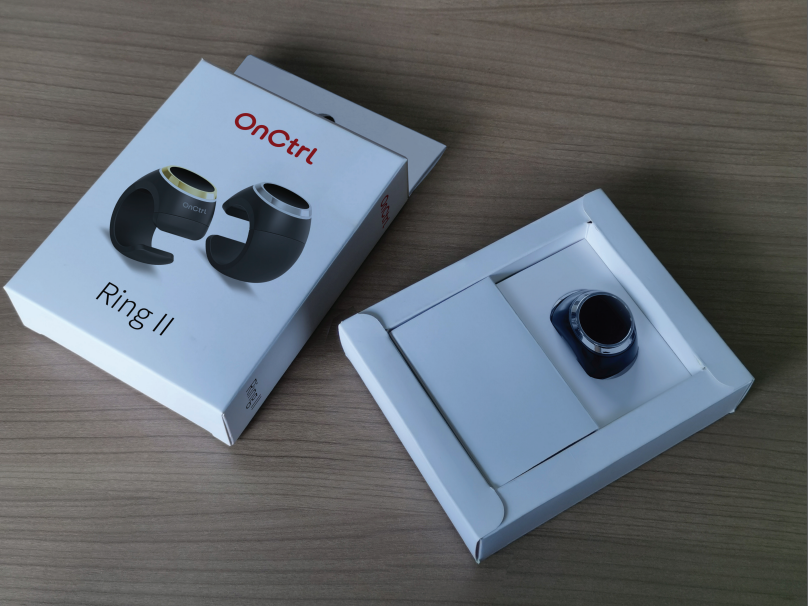

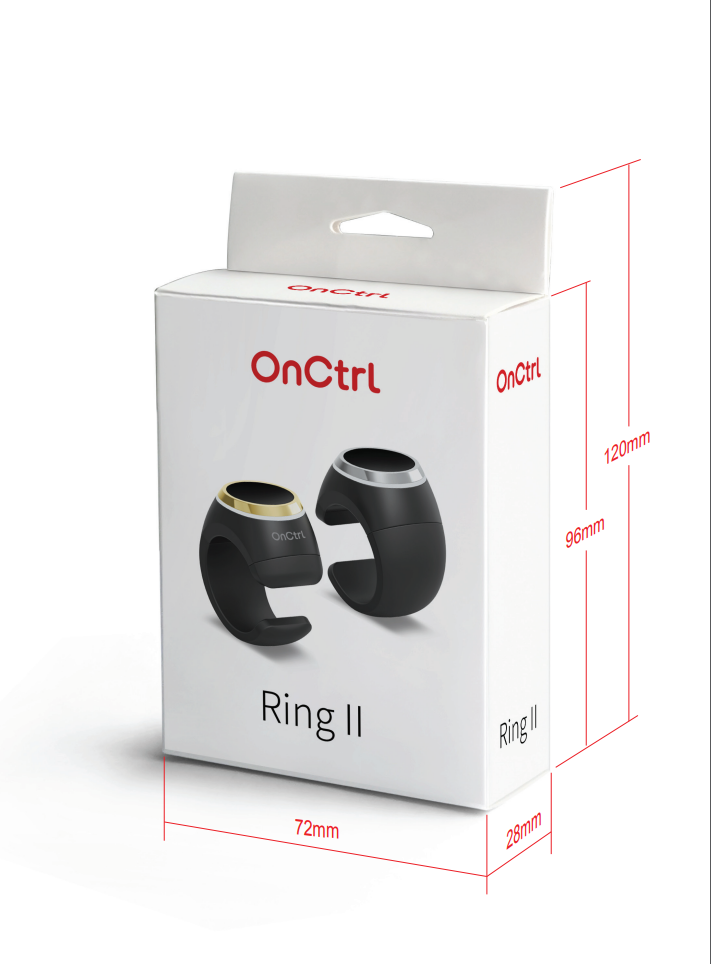

Package

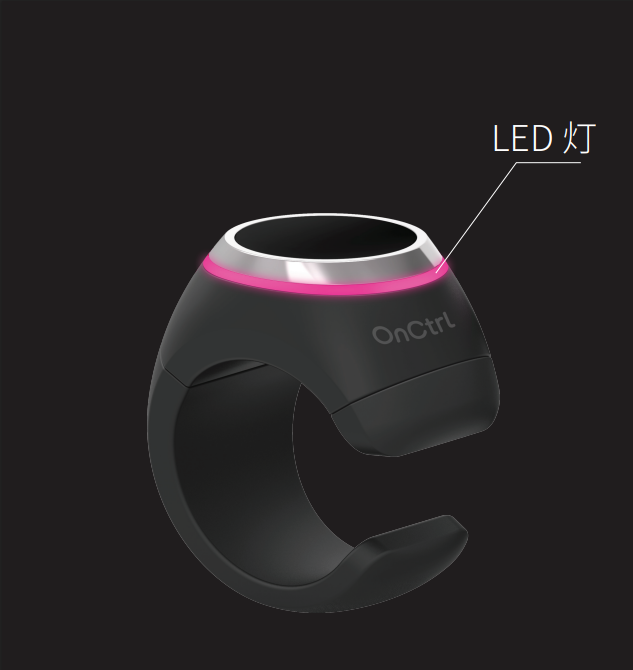

Pink Entertainment Mode

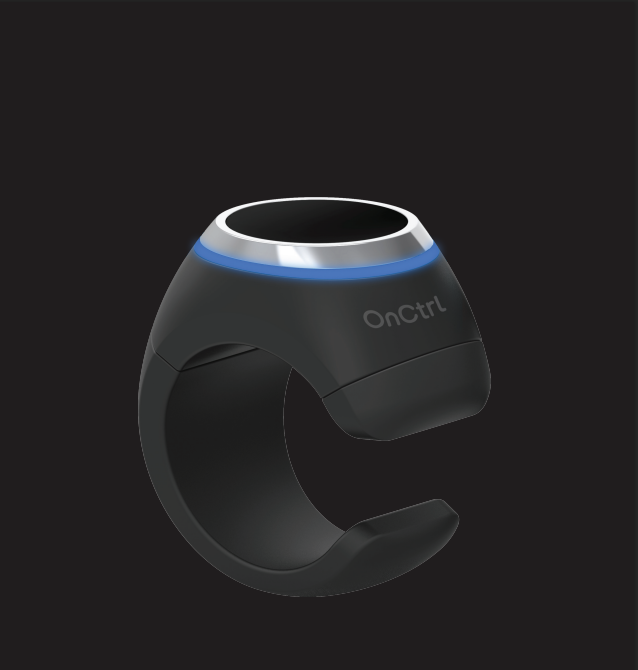

LED Indicator

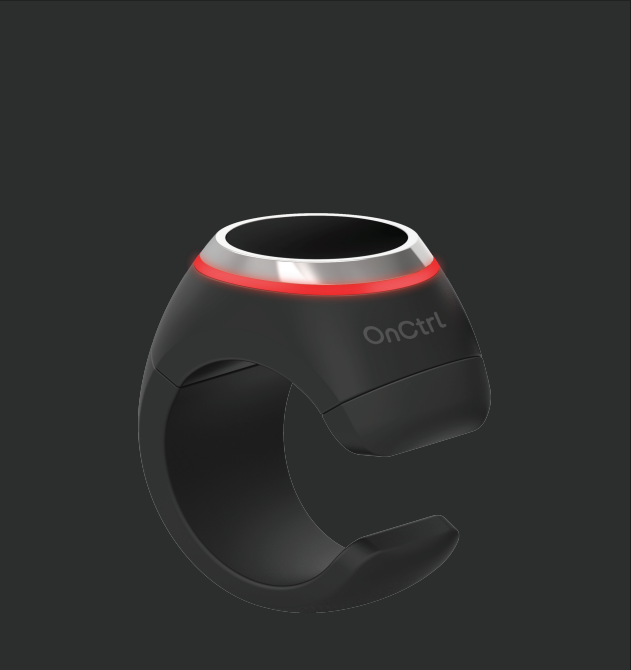

Red Sports Mode
Operation Status:
Blue Halo for Action Camera Mode Power On: On
Red Halo for Sports Mode Light Touch Click: Flashes Once Per Click
Pink Halo for Entertainment Mode Pairing Cleared: Continuously Flashes
Blue Halo for Action Camera Mode Power On: On
Red Halo for Sports Mode Light Touch Click: Flashes Once Per Click
Pink Halo for Entertainment Mode Pairing Cleared: Continuously Flashes
Connected: Breathes (flashes softly) Once
Blue Action Camera Control
Fully Charged: Continuously Lit
Low Battery (<30%): Single Flash Every 10 Seconds
Critical Battery (<10%): Single Flash Every 5 Seconds
Charging: Red Light On, Breathes Once Every 10 Seconds
Low Battery (<30%): Single Flash Every 10 Seconds
Critical Battery (<10%): Single Flash Every 5 Seconds
Charging: Red Light On, Breathes Once Every 10 Seconds
Specifications
Bluetooth Low Energy 5.3 Transmission
Frequency Range: 2402-2480MHzTransmit Power, up to 4dBm
Receive Sensitivity: -70dBm
Operation Range, at least 10m
Touch Module
Highly Flexible ProxSense® DeviceDeep Sleep Current: 9μA
4x4 Capacitive Touch Grid, 12 Channels
Battery
Rechargeable Lithium Battery 1xCR301012, Total Capacity 3.7V/20mAh,Battery Charging Current Not More Than 20mA.
Supports Continuous Work for 8 Hours,
Low Power Mode for More Than 2 Months
Battery Not Completely Depleted for More Than 1 Month in Shutdown Mode
Charging Time About 1 Hour.
Note: If the device is not used for a long time, please charge it at least once every 6 months!
Operating Temperature
Product Operating Temperature Range is 0°C to 45°CStorage Temperature
Product Storage Temperature is -40°C to 80°C
